CAD CAM Dental Zirconia Milling Machine Flyin 5 Axis For Dental Lab

Brand Name:	FLYIN
Model Number:	5Axis dental milling machine
MOQ:	1 pcs
Price:	USD 10000-15000 /pcs
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Supply Ability:

1000pcs/month

Highlight:

CAM Dental Zirconia Milling Machine

CAD Dental Zirconia Milling Machine

5 Axis Zirconia Milling Machine

Product Description

Professional Equipment Dental- zirconia Block Milling Machine Flyin 5 Axis Milling Machine for Dental Lab CAD CAM

Product Description:

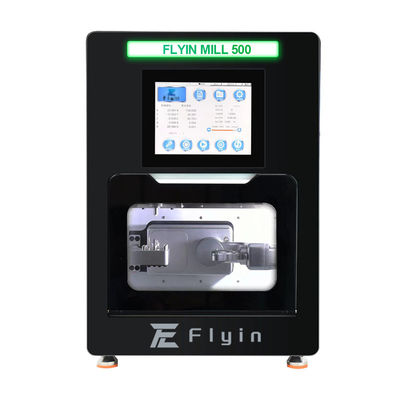

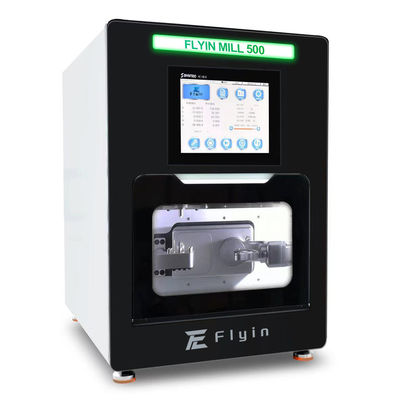

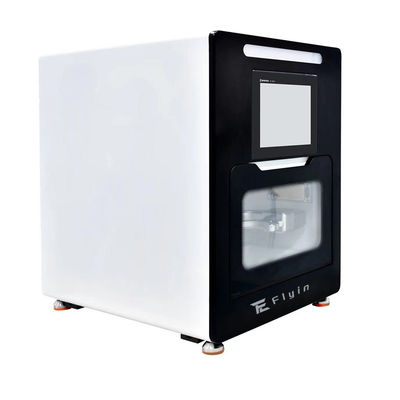

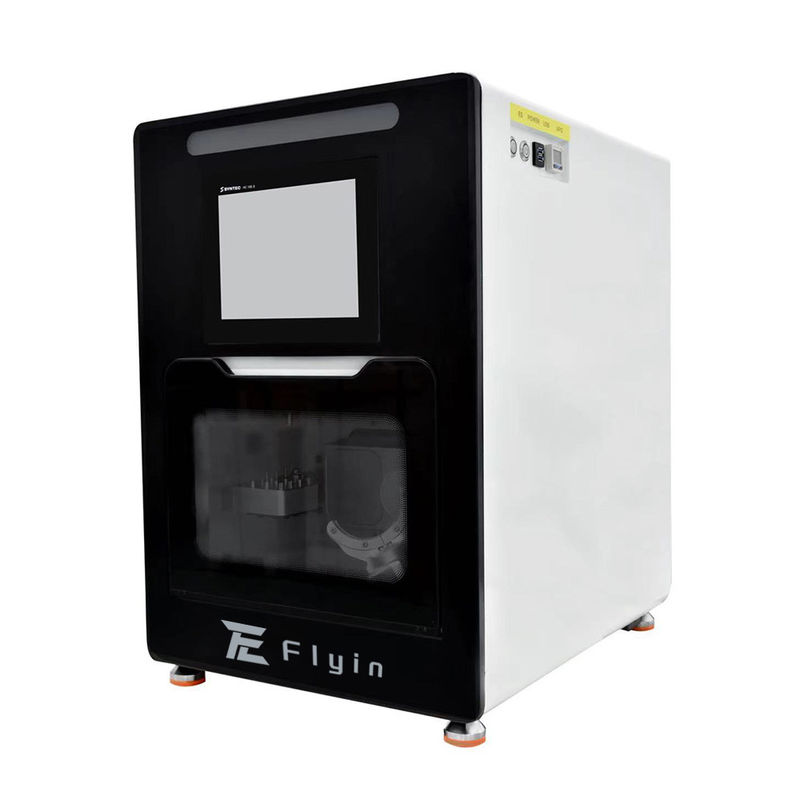

The FLYIN MILL 500 5 axis dry dental milling machine is the best milling machine for dental laboratories and clinics.

It has the following characteristics:

small occupation space, large operating space,
simple operation,
automaticly change burs,
high precision,
fast milling speed,
wifi connection &control,
90°milling strategy,
Led light bar indicator,
resume when interrupted,
ultra-silent processing.

CAD CAM Dental Zirconia Milling Machine Flyin 5 Axis For Dental Lab 0

Advantage:

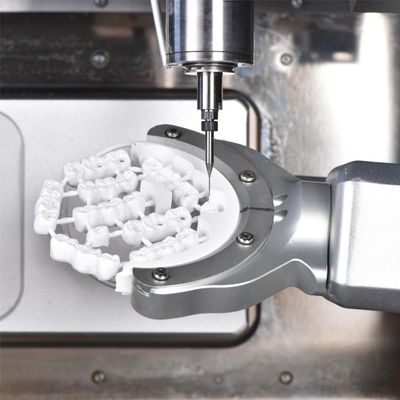

*90° Vertical Milling
The 90°Vertical Milling is good for milling of the anterior and allows for a fine texturing of the denture, providing the customer with a more perfect result.

*Large B-axis rotation
B-axis rotation angles up to +35°, -91°, so large angle implants can be processed

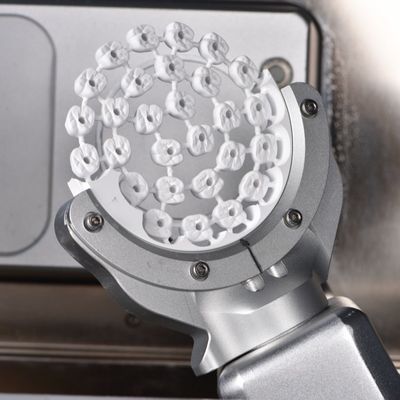

* 20% increased in material utilisation
The C-Clamp Adapter allowing the use of material edges and a 20% increase in material utilisation.

*Resume when interrupted
In case of an unexpected situation, processing can be automatically resumed from the last interrupted step, avoiding duplication of work and improving processing efficiency

Specifications:

Name:dental cad cam milling machine

Axis	5 Axis
Cut Method	dry milling
Milling Materials	zirconia block, pmma, pmma, wax
Size of milling materials	φ98, thickness(10-30mm)
Range of rotation & tling rotation	x/y/z: 105 / 135/ 90 A:360° B:120°
Speed of Principal axis	0-60000rpm / 500w
Driver	Full rotation servo motor drive

cutters	10 tools; φ4mm
Compressed Air:	4.5-7.5bar;50ml/min
Min Capacity-Dry:	3000L/min
Power requirment :	800W;220-230v AC,56/60 hz

Machinable denture type:

It can work on crown, bridge,coping,veneer, inlay, onlay, large-angle implants, abutment and other dental restoration case.

CAD CAM Dental Zirconia Milling Machine Flyin 5 Axis For Dental Lab 1

Pre-sale and after-sale service:

*Quality control department

Testing of all products before shipping

*Strict and complete production system

Efficient delivery, all orders delivered within a week

* After-sales guarantee

One year free replacement of spare parts, lifetime after-sales service

*Perfect after-sales system

After-sales service personnel, including mechanical engineers, software engineers, dental technicians, are available for you 24 hours a day, 7 days a week.
