Zirconia Dental Lab 5axis Dental Milling Machine For Carving Zirconia Blocks

Brand Name:	FLYIN
Model Number:	5Axis dental milling machine
MOQ:	1 pcs
Price:	USD 10000-15000 /pcs
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Quality:

High Quality

Drilling Speed:

1600rpm

Diameter:

Spindle Speed:

6000-30000 Rpm

Milling Precision:

0.2mm

Dimensions:

535*655*720mm

Gurantee:

1 Year

Safety Standard:

Package:

Wooden Packing

Voltage:

Support

Model:

Flyin 5Axis Dental Milling Machine

Axis No:

Supply Ability:

1000pcs/month

Highlight:

Zirconia Dental Milling Machine

Zirconia Blocks Dental Milling Machine

5axis Zirconia Milling Machine

Product Description

Drop shipping Zirconia dental lab equipment 5axis dental milling machine for Carving zirconia blocks

Product Description:

FLYIN Dental Milling Machine Introduction

Flyin milling machines are high-precision 5-axis milling machines with CE certification, exclusively sold worldwide, capable of milling materials such as zirconia, peek, PMMA, etc

FLYIN Mill 500 Dental Milling Machine

● Automatic change and calibrate tools

● High resolution digital servo motor control system

● Dry milling mode

● High spindle speed and water spindle cooling

Zirconia Dental Lab 5axis Dental Milling Machine For Carving Zirconia Blocks 0

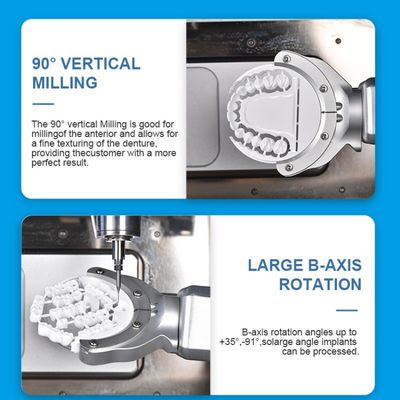

Advantage

*90° Vertical Milling
The 90°Vertical Milling is good for milling of the anterior and allows for a fine texturing of the denture, providing the customer with a more perfect result.

*Large B-axis rotation
B-axis rotation angles up to +35°, -91°, so large angle implants can be processed

* 20% increased in material utilisation
The C-Clamp Adapter allowing the use of material edges and a 20% increase in material utilisation.

*Resume when interrupted
In case of an unexpected situation, processing can be automatically resumed from the last interrupted step, avoiding duplication of work and improving processing efficiency

Specifications:

Name:dental cad cam milling machine

Axis	5 Axis
Cut Method	dry milling
Milling Materials	zirconia block, pmma, pmma, wax
Size of milling materials	φ98, thickness(10-30mm)
Range of rotation & tling rotation	x/y/z: 105 / 135/ 90 A:360° B:120°
Speed of Principal axis	0-60000rpm / 500w
Driver	Full rotation servo motor drive

cutters	10 tools; φ4mm
Compressed Air:	4.5-7.5bar;50ml/min
Min Capacity-Dry:	3000L/min
Power requirment :	800W;220-230v AC,56/60 hz

Zirconia Dental Lab 5axis Dental Milling Machine For Carving Zirconia Blocks 1

Pre-sale and after-sale service:

*Quality control department

Testing of all products before shipping

*Strict and complete production system

Efficient delivery, all orders delivered within a week

* After-sales guarantee

One year free replacement of spare parts, lifetime after-sales service

*Perfect after-sales system

After-sales service personnel, including mechanical engineers, software engineers, dental technicians, are available for you 24 hours a day, 7 days a week.

Company

Flyin is a high-tech dental materials and equipment company that produces dental zirconia discs, glass ceramics, scanners, 3D printers, milling machines and sintering furnaces, and other consumables.

We have a modern science and technology park covering an area of nearly 10,000 square meters, equipped with advanced research and development laboratories and production workshops, and adopts fully intelligent CNC machines for production management to meet the high standard of product quality.

At present, the company's monthly output of zirconia blocks exceeds 100,000 pieces, and the team has expanded to 200+ people, of which more than 60% of the R&D engineers are biomaterials experts and intelligent CNC experts with middle and senior titles.

We have sold our products to nearly 150 countries around the world. Our whole series of products have been awarded dozens of invention patents and utility patents in just 6 years, and have passed many domestic and international honors and authoritative qualification certifications, such as ISO, CE certification, South Korea KGMP certification, Innovative Enterprises, Integrity Demonstration Enterprises, High-tech enterprises, and so on. Our products are exported to more than 150 countries and regions around the world.We have a professional after-sales service department to provide one-to-one 24/7 after-sales service to our customers.

And we are looking for strong agents around theworld.
