Cad Cam Dental Milling Machine 5axis for Press Ingots Dental Zirconia Blocks

Brand Name:	FLYIN
Model Number:	5Axis dental milling machine
MOQ:	1 pcs
Price:	USD 10000-15000 /pcs
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Function:

For Milling Denture

Software:

CAM Software

Power Consumption:

Rotation Angle:

A 360° B:120°

Cutters:

10 Tools; φ4mm

Working Pressure:

4.5-7.5bar

Spindle Speed:

60,000 Rpm

After Sale:

All Life

Weight:

150 Kg

Power Supply:

220 V, 50/60 Hz

Support

Axis No:

Supply Ability:

1000pcs/month

Highlight:

5axis Dental Milling Machine

Cad Cam Dental Milling Machine

Zirconia Cad Cam Milling Machine

Product Description

Manufacturer Press Ingots dental zirconia blocks Cad Cam made by 5axis dental milling machine

Product Description:

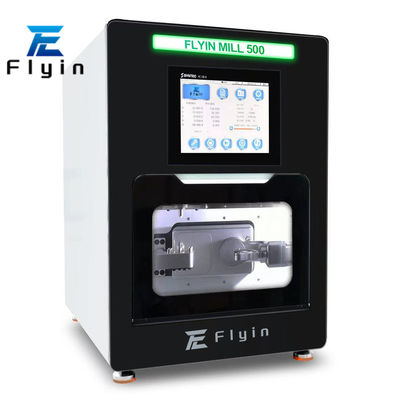

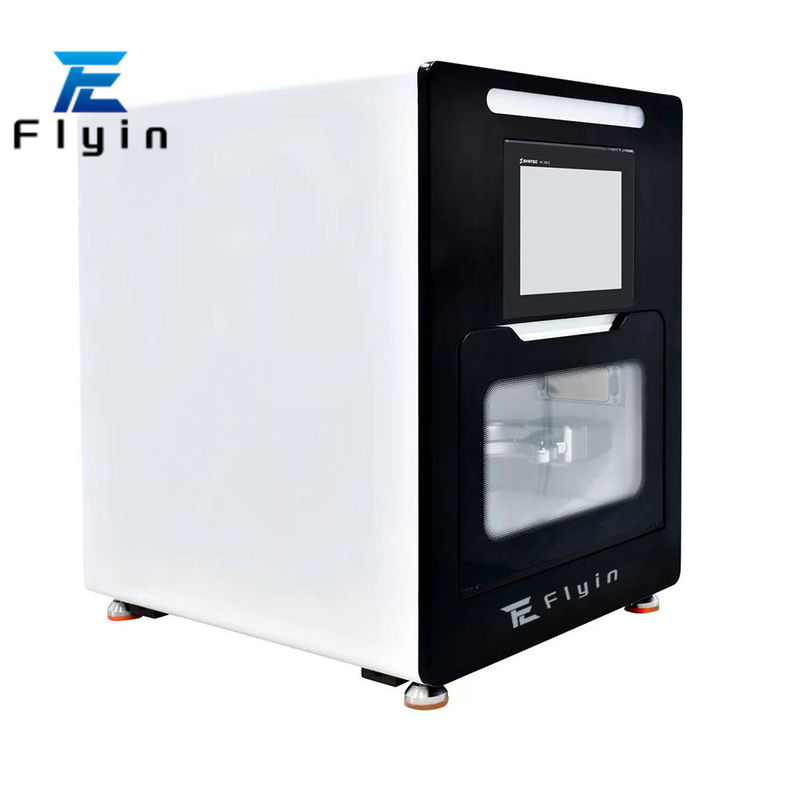

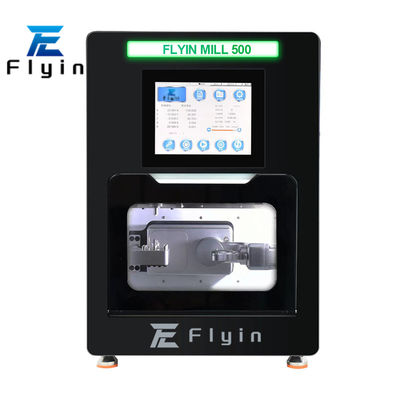

The FLYIN MILL 500 5 axis dry dental milling machine is the best milling machine for dental laboratories and clinics.

It has the following characteristics:

small occupation space, large operating space,
simple operation,
automaticly change burs,
high precision,
fast milling speed,
wifi connection &control,
90°milling strategy,
Led light bar indicator,
resume when interrupted,
ultra-silent processing.

Cad Cam Dental Milling Machine 5axis for Press Ingots Dental Zirconia Blocks 0

Advantage

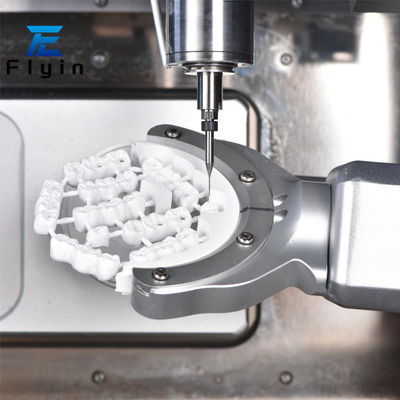

*90° Vertical Milling
The 90°Vertical Milling is good for milling of the anterior and allows for a fine texturing of the denture, providing the customer with a more perfect result.

*Large B-axis rotation
B-axis rotation angles up to +35°, -91°, so large angle implants can be processed

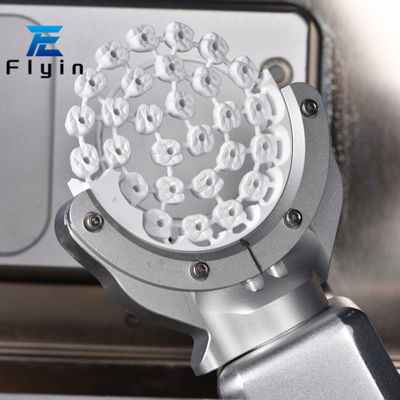

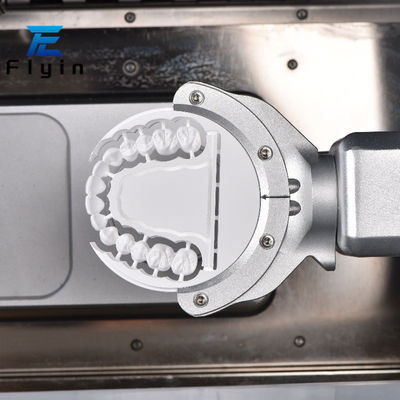

* 20% increased in material utilisation
The C-Clamp Adapter allowing the use of material edges and a 20% increase in material utilisation.

*Resume when interrupted
In case of an unexpected situation, processing can be automatically resumed from the last interrupted step, avoiding duplication of work and improving processing efficiency

Specifications:

Name:dental cad cam milling machine

Axis	5 Axis
Cut Method	dry milling
Milling Materials	zirconia block, pmma, pmma, wax
Size of milling materials	φ98, thickness(10-30mm)
Range of rotation & tling rotation	x/y/z: 105 / 135/ 90 A:360° B:120°
Speed of Principal axis	0-60000rpm / 500w
Driver	Full rotation servo motor drive

cutters	10 tools; φ4mm
Compressed Air:	4.5-7.5bar;50ml/min
Min Capacity-Dry:	3000L/min
Power requirment :	800W;220-230v AC,56/60 hz

There are seven tool magazines with large capacity,Fully automatic tool change. 7 tool magazines, which can automatically and accurately change tools and improve work efficiency.You can use the free tool position to place the PMMA tool and set up the replacement tool, which is equivalent to prolonging the service life of the tool,Save money on burs.

FLYIN Mill500 is equipped with an intelligent memory servo system, which can solve the problem of sudden power failure or abnormal circuit during processing, realize continuous transmission from breakpoints, and greatly improve work efficiency.

FLYIN Mill500 milling machine, newly upgraded B-axis swing (+35°, -91°), easily realizes milling of large dental arches, undercuts, and large-angle zirconia abutments , The processing range is wider, and the difficult problem of processing large-angle restorations in the industry is solved.
