| Brand Name: | FLYIN |
| Model Number: | 5Axis dental milling machine |
| MOQ: | 1 pcs |
| Price: | USD 10000-15000 /pcs |
| Payment Terms: | T/T, Western Union, MoneyGram |

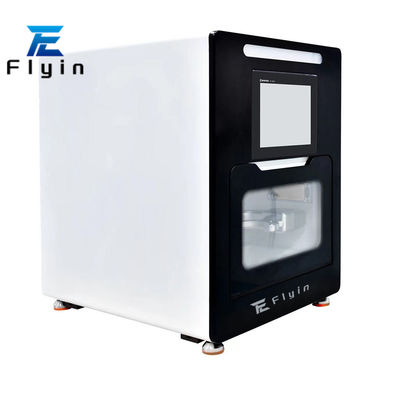

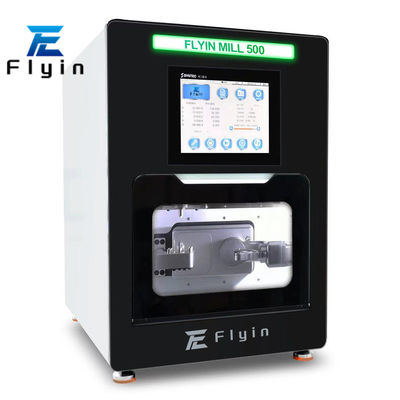

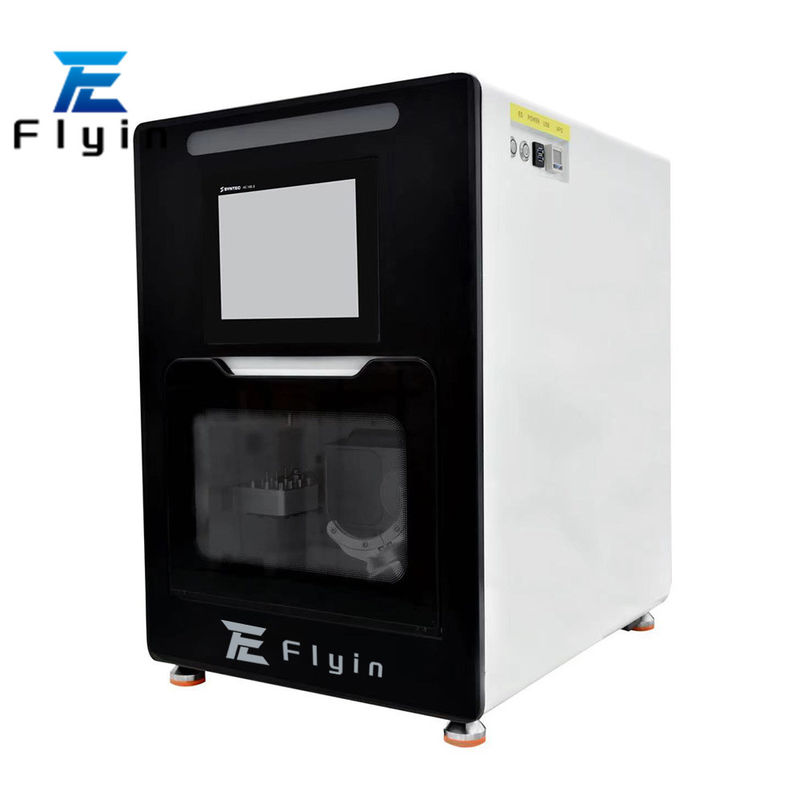

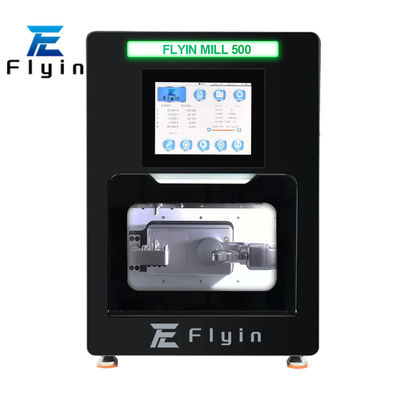

Hot Sale 5axis Dental Milling Machine For Carving Porcelain Teeth Zirconia Materials In Dental Lab
Product Description:
Specifications:
Name:dental cad cam milling machine
| Axis | 5 Axis |
| Cut Method | dry milling |
| Milling Materials | zirconia block, pmma, pmma, wax |
| Size of milling materials | φ98, thickness(10-30mm) |
| Range of rotation & tling rotation | x/y/z: 105 / 135/ 90 A:360° B:120° |
| Speed of Principal axis | 0-60000rpm / 500w |
| Driver | Full rotation servo motor drive |
| cutters | 10 tools; φ4mm |
| Compressed Air: | 4.5-7.5bar;50ml/min |
| Min Capacity-Dry: | 3000L/min |
| Power requirment : | 800W;220-230v AC,56/60 hz |

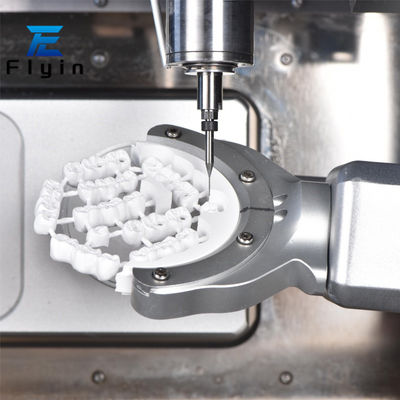

The spindle ,the maximum speed reaches 60000rmp.Milling a full crown posterior tooth implant, it only takes about fifteen minutes,it is about two minutes faster than ordinary 5-axis machines,improved work efficiency,save time.
The taper hole of the spindle has a runout of 0.001mm, and the dynamic precision of the spindle is highly stable during processing, which effectively ensures the surface finish of the workpiece.
The maximum speed of the spindle reaches 60,000rpm, and the material removal rate during processing is significantly improved. So as to ensure high-efficiency processing
|
|
